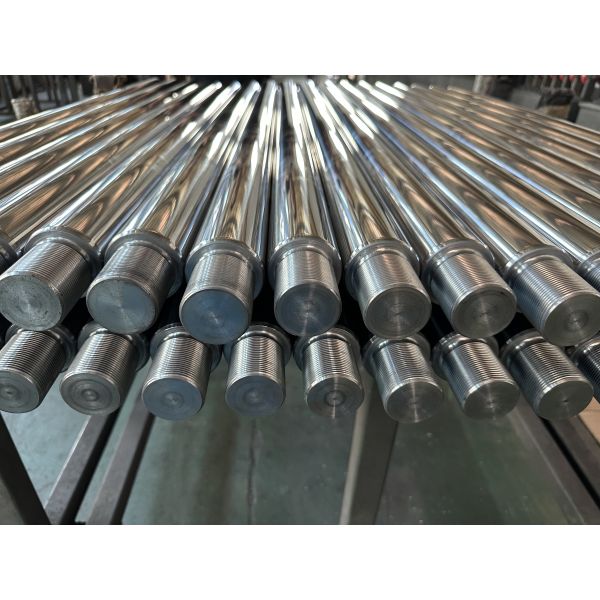

Servo Motor Precision Ground Solid Shaft For Transmission Systems

Brand Name : Zhisheng

High-frequency quenching : HRC50-60

Surface hardness : 800-1150HV

Surface treatment : Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening

Salt spray test : Level 9150-300 hours

Weldability : good

Packing : After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box

Quality certificate : Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc

Quenching and tempering hardness : HB220-360

Straightness : ≤0.1mm/m

Surface roughness : ≤0.05μm

Chromium plating thicknes : 0.02mm-0.50mm

Outer diameter tolerance : Other customizable options)

Length : L200-20000mm

Size : φ20-φ500mm

Model Number : 20#

Place of Origin : China

MOQ : 1 tons

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 30tons a day

Delivery Time : 30days

Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Contact Now

Precision Ground Solid Shaft for Servo Motor and Transmission Systems
Product Overview
The Precision Ground Solid Shaft is designed for servo motors, stepper motors, and precision transmission systems that require tight tolerance and superior balance. Its precision grinding process guarantees optimal roundness and alignment.
Product Specifications
Attribute Value
Material 45# Steel / S45C / 1045 Carbon Steel
Heat Treatment Quenched and Tempered
Hardness HRC 25-35
Surface Roughness ≤ 0.03 μm
Straightness ≤ 0.05 mm/m
Tensile Strength ≥ 800 MPa
Diameter Range φ10 mm - φ150 mm
Length Range 150 mm - 3000 mm
Certification ISO 9001 / SGS
Key Features
  • High concentricity and tight tolerance
  • Optimized for smooth rotation
  • Suitable for dynamic power transmission
  • Excellent dimensional stability under stress
Applications
  • Servo and stepper motor shafts
  • Precision mechanical assemblies
  • Drive couplings and gear systems
  • Automation and control devices
Customer Benefits
  • High stability and low vibration
  • Consistent performance at high RPM
  • Custom grinding and machining services

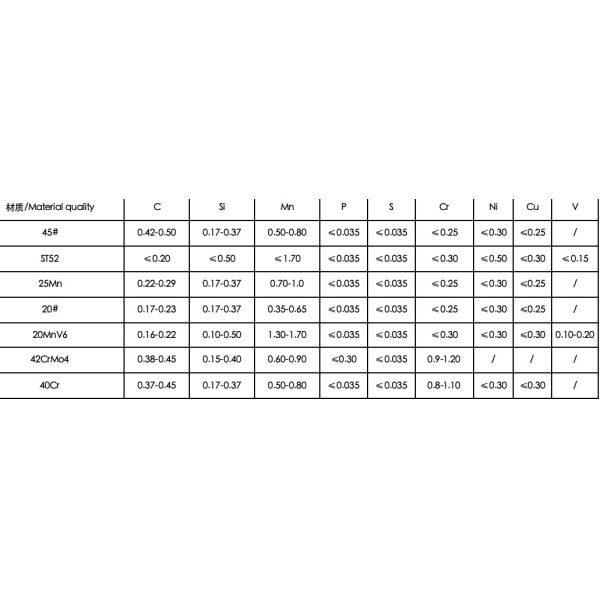

Chemical Composition
Servo Motor Precision Ground Solid Shaft For Transmission Systems
Servo Motor Precision Ground Solid Shaft For Transmission Systems
